Turning Rolls

Turning rolls, also called welding rotator, is a common welding auxiliary equipment. Among welding automation equipment, turning rolls can be matched with many types of equipment, such as welding positioner and welding manipulator. For some difficult welding positions, it can also be handled very simply. In the welding process, the most common are the inner and outer ring seams, fillet welds, inner and outer longitudinal seams, etc., which can use the friction between the workpiece and the driving wheel to drive the cylinder to rotate.

Application

Description

Turning rolls are often used for the welding of inner and outer circumferential seams and inner and outer longitudinal seams of some cylinders. Among them, it is composed of a base, a driving wheel, a driven wheel, a bracket, and a driving device. It can be used in combination with welding positioner and welding manipulator to realize welding automatic production line, and to a large extent reduce labor intensity, and improve the driving force for production efficiency.

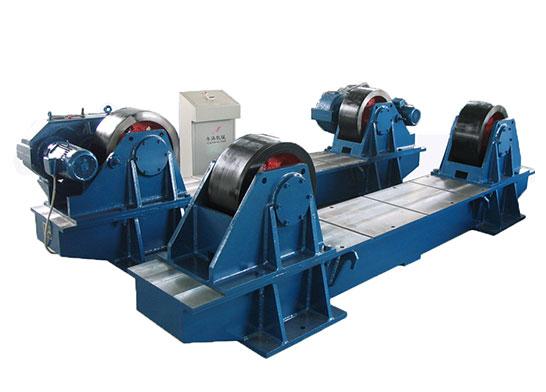

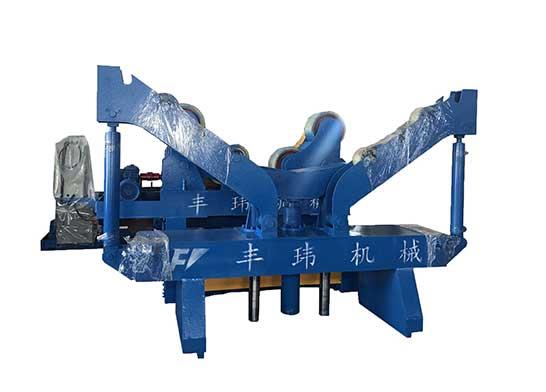

turning rolls

Manufacturing structure of turning rolls

1. Anti-channeling mechanical execution structure

Generally speaking, the workpiece is moved in the axial direction by friction force on the turning rolls, but in order to optimize it, many manufacturers realize that the turning rolls can be moved to the opposite direction at will during the spiral movement. The current technology can be implemented in three areas:

(1) Jack-up actuator

This form allows the driven wheel to move up and down and offsets the axis of the workpiece. This method greatly improves the adjustment sensitivity of turning rolls and is suitable for some larger workpieces.

(2) Offset type actuator

The rollers on both sides of the driven wheel move in the same direction along the vertical centerline, thereby causing the workpiece to shift. This form is also very sensitive.

(3) Translational actuator

This form is known by the name. Turning rolls do the horizontal movement. It has many advantages. Not only is it extremely stable, but its structure is also very simple, and it does not take up additional installation space.

2. Control of driving wheel speed

The mainstream drive currently adopted by turning rolls is stepless speed regulation, which can achieve smooth rotation, and it can be adjusted by DC or AC frequency conversion. After DC speed regulation enters the market, many factories and manufacturers often encounter failures, and the cost is also high. Therefore, the current AC frequency conversion speed regulation has become the mainstream of the moment. On this basis, the manufacturer also separates each driving wheel. Equipped with an electric motor and geared motor.

3. Adaptive control

In order to make turning rolls more automated, we generally add parameter tracking algorithms to its system, allowing the computer to automatically track the signals it returns and preset action thresholds.

Our roller racks generally come in many forms, the most common of which are:

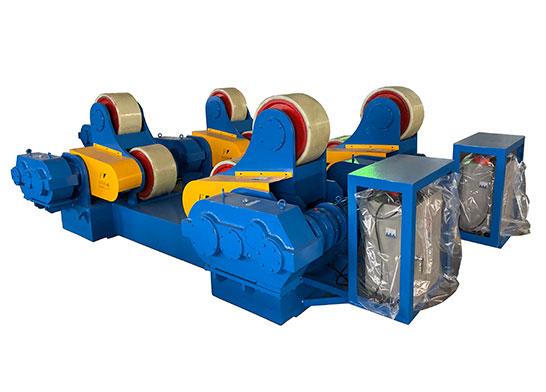

Self-adjusting turning rolls

Self-adjusting tuning rolls are mainly used in the assembly and welding of pipelines, vessels, and pressure vessels. The most commonly used matching method is to combine with welding manipulator and welding positioner to realize the inner and outer longitudinal seam welding and inner and outer circumferential seam welding of the workpiece. The biggest advantage of self-adjusting turning rolls is that the factory can automatically adjust the diameter of the workpiece. The swing angle of the roller set can be automatically adjusted.

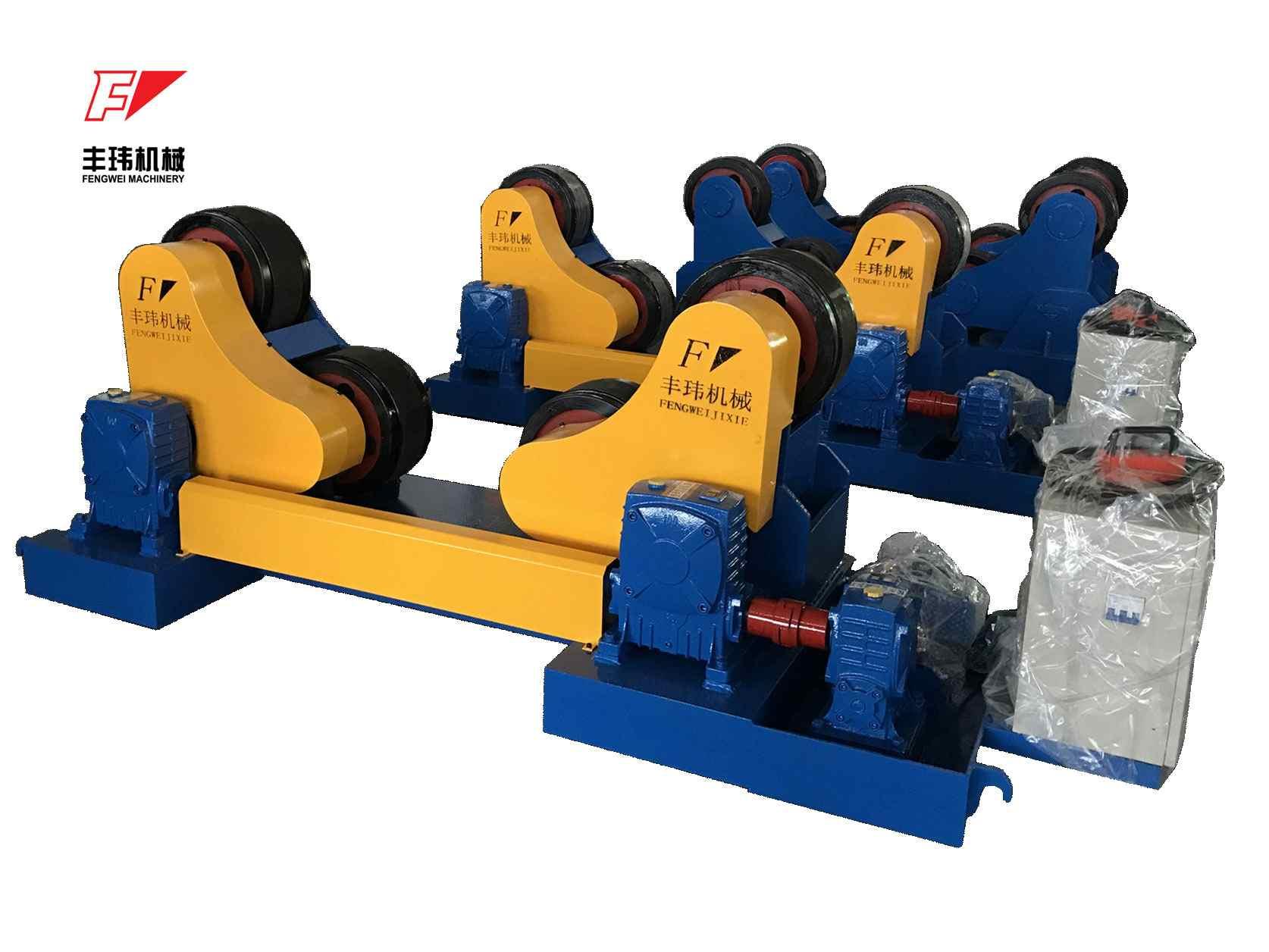

Self-aligning rotator

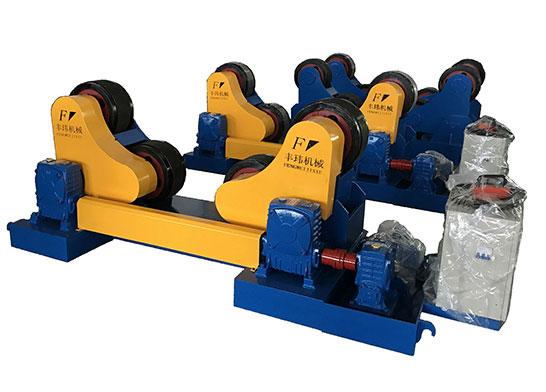

Self-aligning rotator

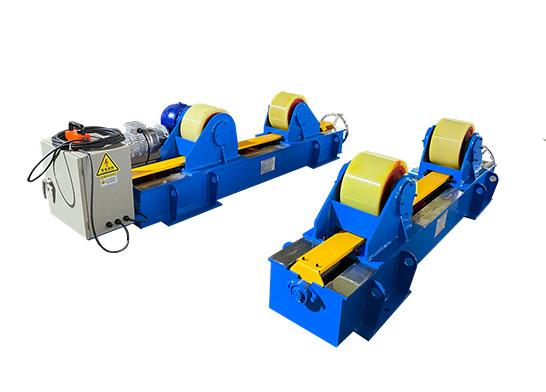

Adjustable turning rolls

Adjustable turning rolls are composed of a driving wheel and a driven wheel. It adopts the form of stepless speed change. In terms of the welding process, it can greatly meet the needs of manual welding, automatic surfacing welding, automatic submerged arc welding and so on. In other words, the arduousness between the driving wheel and the driven wheel can be adjusted by adjusting the screw rod, which has met different welding requirements.

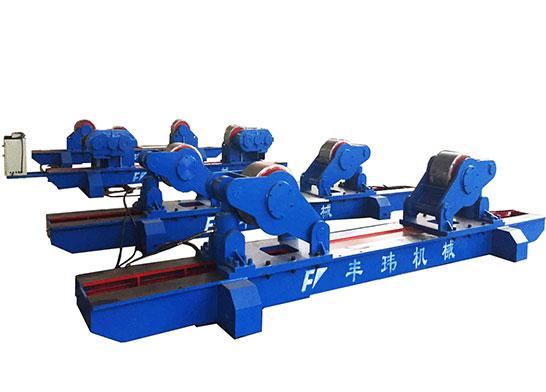

20 Tons conventional turning rolls

20 Tons conventional turning rolls



Anti-channeling welding turning rolls

The process of anti-tampering turning rolls is mentioned above, that is, on the basis of adjustable turning rolls, the driven frame of turning rolls is made up and down and embedded in the system so that it can be controlled by the controller.

Application Field

  • Petrochemical Industry

  • Environmental Protection

  • Steel Structure

  • Power Tower

  • The petrochemical industry plays a crucial role in enhancing the growth and economy of the world. Additionally, petroleum products produced in offshore and onshore exploration, refining, and oil production have also increased, resulting in increasingly complex waste production. This industry is a vital source of inorganic toxic and organic materials.

    For the run of the industries present worldwide the top-quality equipment is mandatory. Several types of machinery producing industries are present worldwide but choosing the right one is a little confusing. Don't worry; we are here for your help. Giving the right solutions and shipments to your industry is our duty.

    Here are 3 must haves of welding automations for the fabrication process in the petrochemical industry:

    1) Conventional welding rotators

    2) fit up welding rotators

    3) welding manipulator.

  • Wind towers have saved 30% of nonrenewable energy while producing electricity. Today, there are hundreds of wind farms and sea areas are having thousands of wind towers. They hold the generator or dynamo blades, which are tones of weight. These wind power infrastructures are standing strong due to the use of welding rotators, welding manipulator, and welding positioners to be a tank assembly line. Experts in technology and engineering make them.

  • Steel structure has become an indispensable material type used in modern construction industry. Due to the feature of environmental friendly, it has been widely used in construction, such as steel structure factory building, ordinary steel construction building, boiler, pressure vessel, shipbuilding, electric power, petrochemical, petroleum engineering machinery, bridge construction, metallurgical machinery industry, wind power and power tower etc. The bird's Nest building in Beijing, China, is a classic masterpiece of steel structure architecture.

    The h-beam steel production line made by Fengwei Machinery is a highly automated steel structure production line which composes of CNC flame cutting machine, h beam assembly machine, h beam welding machine, and h beam straightening machine. It greatly reduces labor intensity and production costs, improves production efficiency.



  • The application of automatic welding and cutting equipment in the manufacturing process of steel tube tower can thoroughly optimize and upgrade the original production process. The traditional production mode adopts the operation of lifting semi-finished products, which requires a special person to be responsible for the lifting and operation of semi-finished products. It has high requirements on the environment and working space, which not only requires a lot of manpower and material input, but also has high labor intensity with low production efficiency. Different from the traditional production mode, the automatic cutting equipment integrates online monitoring, automatic upload and offload raw materials and other automatic functions, can reduce the workload of workers and work intensity, thus greatly improving the production efficiency. The production lines of cutting, pairing and welding can cover each area of the workshop, which can be operated as a whole or independently in each area.
